Electronic Diagnostic Boxes

Desktop solutions to train wire diagnostic procedures.

Trimax training box 01

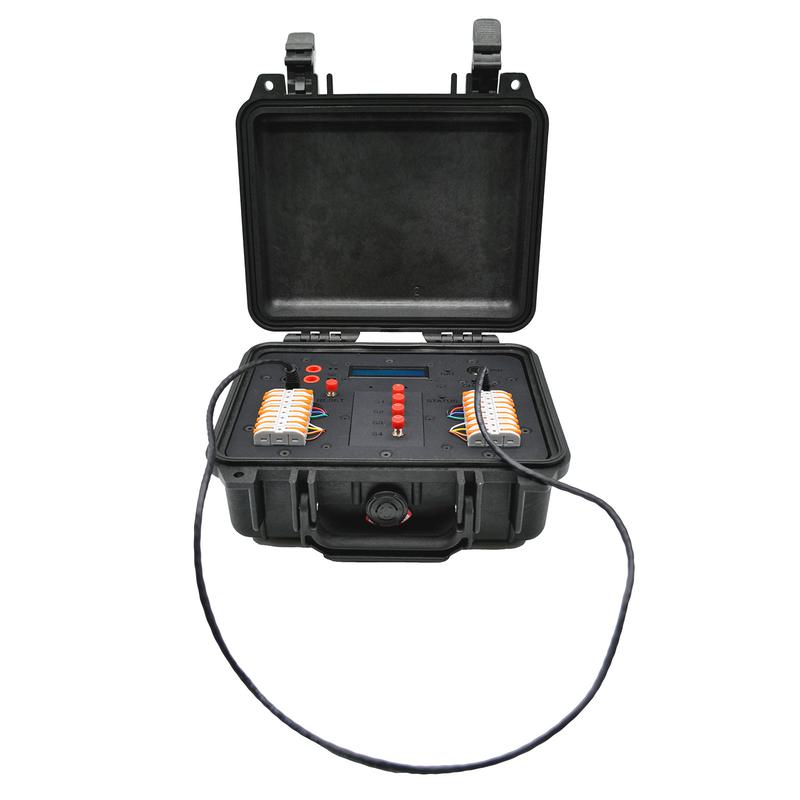

Our diagnostic boxes allow operators to practice their electronic diagnostic render-safe procedures using either Trimax tooling or their own current capabilities. The boxes can be used with an ethernet cable or custom cables, and are reconfigurable to prevent users from learning a standardised setup. We currently offer a range of four variants:

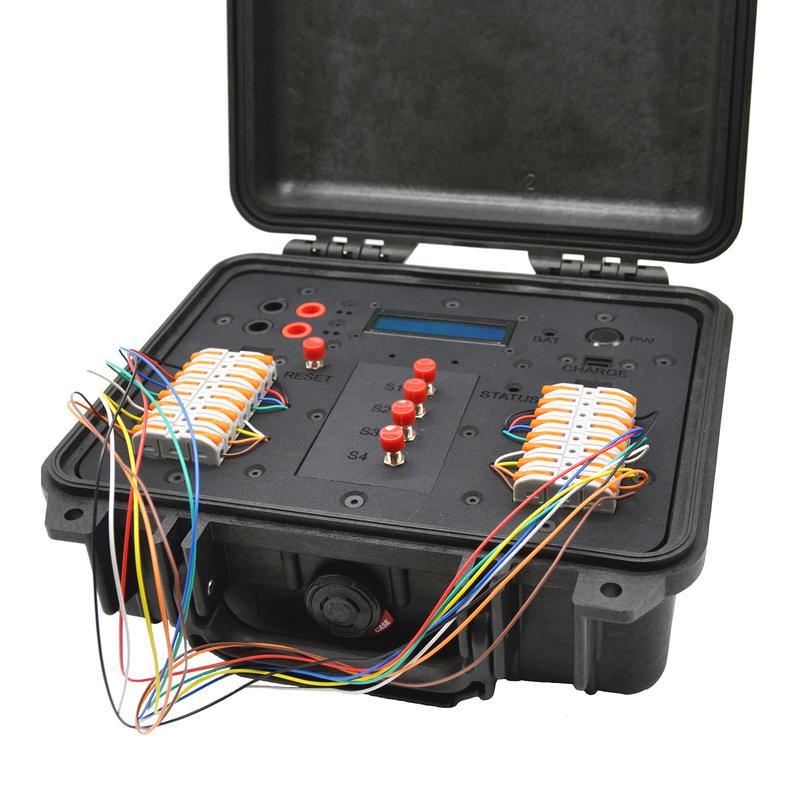

  • Box 1 : Passive switches

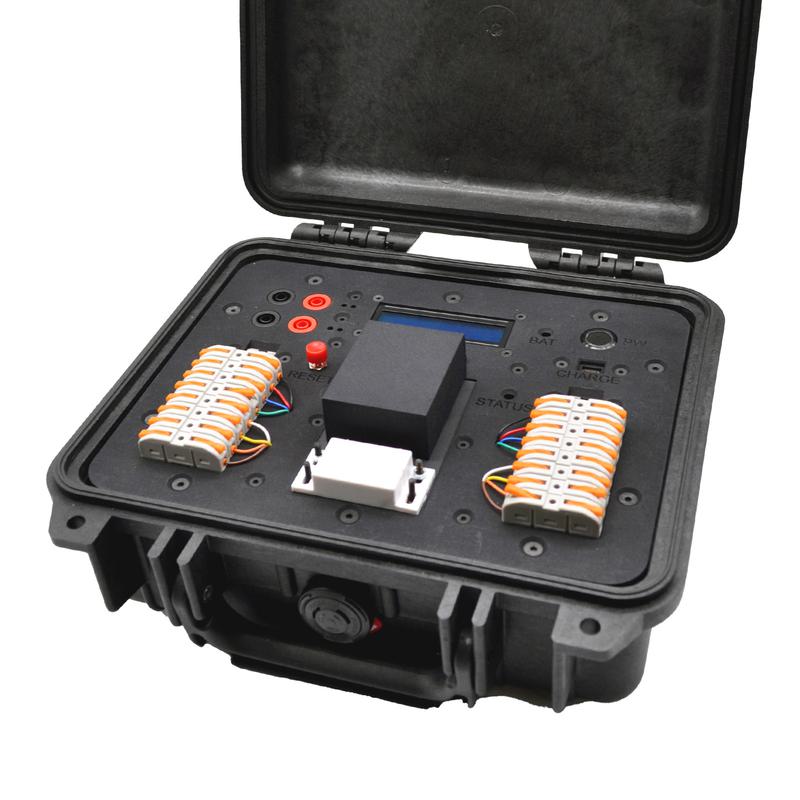

  • Box 2 : 12V commercial PIR

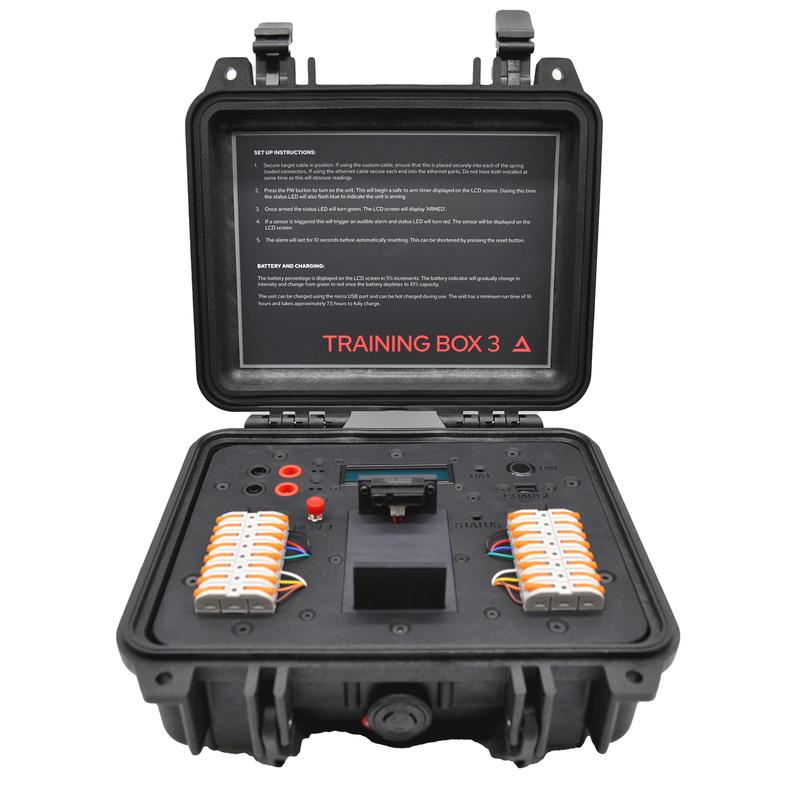

  • Box 3 : Voltage sensor
  • Box 4 : Small 12V PIR and reed switch
  • Built-in Li-ion battery
  • 16-hour battery life
  • Micro USB charging & hot chargeable
  • Alpha-numeric display
  • Ruggedised pelican case enclosure
  • Visual and audible feedback
  • The series of 4 units have been designed to train the use of VIPA, DCM, RDT & VDT
